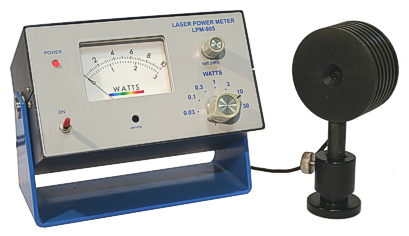

Laser Power Meter "LPM-905"
Compact and fast power meter of optical radiation for all types of
laser - measures average power from 3 mW to 30 W over a spectral
range of 0.2 to 12 microns.
|
Fast response time
High sensitivity
Analog responsiveness
Precise and stable readings
|
DETECTOR HEAD
Max. CW Power
|
30 W
|
|
Spectral Range
|
0.2 - 12 microns
|
|
Sensor Type
|
Thermal Disc
|
|
Aperture Diameter
|
10 mm
|
|
Max. Head Diameter
|
75 mm
|
|
Cooling
|
Covection
|
DISPLAY METER
Display Type
|
Analog
|
|
Ranges
|
0.03, 0.1, 0.3, 1, 3, 10, 30 W
|
|
Response Time
|
0.5 sec
|
|
System Accurancy (Full Scale)
|
5 %
|
|
Recorder Output
|
0 to 5 V
|
|
Optional AC Operation
|
115/220 V
|
|
