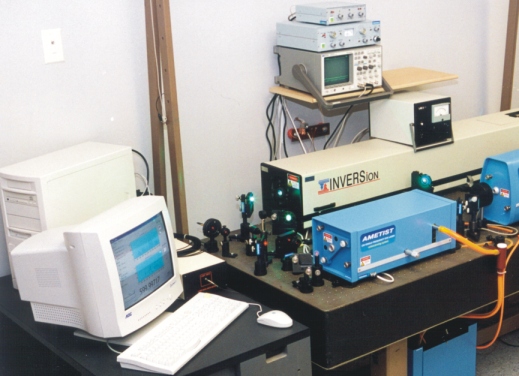

SpectraScania Laser System

SpectraScania Laser System includes:
"Ametist" CW Dye Laser
"LPM-905" Laser Power Meter
Pump Laser (DPSS laser, 532/515 nm or Ar laser)

Output Power Specifications

Dye	Tuning Range	Wavelength Peak	Pump (Ar-laser)	Output¹
Coumarin 6	510 - 585 nm	540 nm	5W 488 nm	550 mW
Rhodamine 110	540 - 605 nm	565 nm	12 W B-G	1.4 W
Rhodamine 6G	565 - 640 nm	595 nm	12 W B-G	2.O W
Rhodamine B	600 - 665 nm	640 nm	12 W B-G	1.5 W
DCM	610 - 705 nm	665 nm	12 W B-G	2.0 W
Pyridine 2	685 - 780 nm	730 nm	12 W B-G	1.6 W
Styryl 9	785 - 910 nm	840 nm	12 W B-G	1.5 W

¹obtained using a 3 plate birefringent filter:
linewidth < 40 ghz

Output beam: mode - TEM_oo, diameter - 0.85 mm, divergence - 1.5 mrad
